Disc Brake T900 Carbon Road Bike Frame Set With REACH Approval

    Buy cheap Disc Brake T900 Carbon Road Bike Frame Set With REACH Approval from wholesalers

    Buy cheap Disc Brake T900 Carbon Road Bike Frame Set With REACH Approval from wholesalers
    • Buy cheap Disc Brake T900 Carbon Road Bike Frame Set With REACH Approval from wholesalers
    • Buy cheap Disc Brake T900 Carbon Road Bike Frame Set With REACH Approval from wholesalers

    Disc Brake T900 Carbon Road Bike Frame Set With REACH Approval

    Ask Lasest Price
    Brand Name : TWITTER
    Model Number : CYCLONEpro-Disc frame
    Certification : CE RoHS REACH ISO9001
    Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, alipay
    Supply Ability : 30000pc per month
    Delivery Time : 7-15 working days
    Price : Negotiable
    • Product Details
    • Company Profile

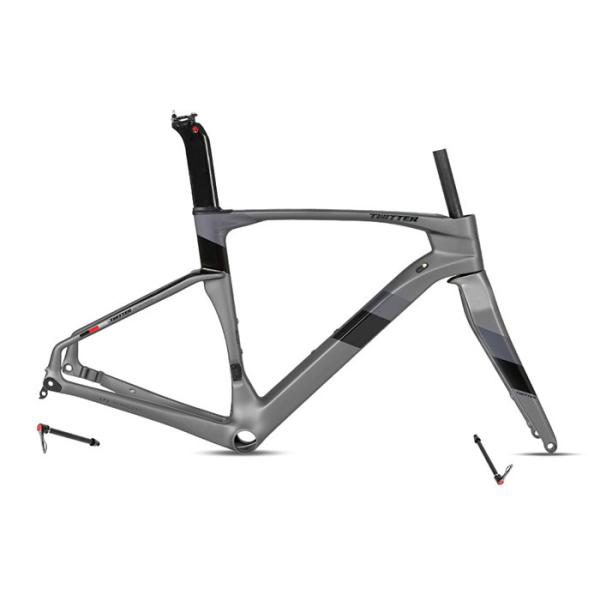

    Disc Brake T900 Carbon Road Bike Frame Set With REACH Approval

    EPS Technology Carbon Fiber Road Disc Brake Bicycle Frame 700C


    Frame specification:


    Brand:TWITTER
    Model/Name:CYCLONEpro-Disc carbon road Frame+Fork+Seat post+
    Headsets+Cover&Washer +Lever+Handlebar set
    Feature:All cables inner Routing



    Technical Specifications:
    Frame Size(Height):45cm / 48cm / 51cm / 54cm
    Material:High modulus Carbon fiber(T900 mix)
    ASSY Size:700C, BB86*46 Pressed+Head tube 52*52&Cover, Hanging fixed to FD, Thru axle F12*100_R12*142mm, Flat-mount post, Inner fixed to seat post, max 700*28C tyre
    Process:XC-Racing, EPS, Inner-Cables, Matte or Gloss or Holographic color paint, UV laser colorful decals
    Weight:Frame 1.02KG, Fork 0.43KG, Seat post 0.19KG, Handlebar set 0.19KG

    sizeABCDEFGHIJK
    BB Center to Top of Seat TubeEffective Top Tube HorizontalBB offsetChainstay LengthSeat angleHead AngleFront CenterHead Tube LengthFork OffsetReachStack
    mmmmmmmm°°mmmmmmmmmm
    XS - 45cm450505-7440874.371.257010055363506
    S - 48cm480520-7440874.371.258811455374518
    M - 51cm510538-7440874.371.260713055388534
    L - 54cm540550-7440874.371.262015055394553

    EPS-Ethyl Poly Styrene:

    In the production process, the carbon fiber layer is coated on the EPS, and the mandrel is pulled out after being stabilized by molding. If the technology of TPM (thermoplastic layer technology) can be further combined, the ultra-light frame can be maximized. Good security effect.


    Yellow

    Please Read- 100% Satisfaction Guarantee
    If you have any problem. Please contact us through Message or or email, we will gladly assist you.
    1 year warranty: Please contact us when you met a problem(except human destruction)during usage and we will try our best to resolve the problem for you and make you satisfied by repairing or replacing a new one.

    Dark gray

    Shipping & Handling
    Our products are sent to any country. If you can't select idead ship method in the order,please kind to contact us.We usually use Express way, 10-15 days arrival.We offer combined shipping discount for multiple item purchases.We will adjusted total price after your order.Tracking number will be emailed to the buyer or be put under order.

    Orange

    Payment
    We accept Alibaba,Alipay,Credit Card,TT,And give your phone number for delivery.Positive feedback will be posted once the payment has been received.

    Disc brake High modulus Carbon fiber


    Return Policy
    Our items we shipped out are all brand new. We offer full refunds or exchange for defective items only and it must be sent back to us in the original condition. If you have received the item in a damaged condition, please notify us within 3 days after receiving. Please take photos which can show track number and damaged package before you open box.Buyer is responsible for return shipping costs.
