TWITTER Rim 700C Carbon Road Bike Frame Height 46 48 50 54 Cm
Compact Design of TWITTER carbon road bike:
The science seems simple – smaller triangles create a stiffer,
stronger bike. With this knowledge, TWITTER developed Compact Road
Design, which essentially saw the toptube sloping down from the
headtube, thus making the frame’s front and rear triangles smaller.
Genius.
TWITTER
Bike has launched carbon fiber frames which made of EPS technology.
The use of EPS technology for carbon fiber products offers the
following advantages:
1. Has a sturdy carbon fiber casing, making the frame durable and
sturdy, and light in weight
2. Has a positive strength to weight ratio, strength and shock
absorption properties make it effective for the frame
3. Reduce the excessive stress concentration inside the frame
4. Stabilization and smoothness between the laminates in the inner
layer of the frame and the joint
5. The finished frame has a bright and smooth appearance.
6. The finished frame has high hardness, good toughness, good
strength and good adhesion.
7. The finished product of the frame has a long service life and
stable quality.
Detail specifications of TWITTER Carbon fiber road bike R10:
| Frame | T800 high modulus Carbon
fiber,EPS,Aero-Racing,Inner-Cables,Gloss&UV laser colorful
decals |
| Handelbar Sets | TW, Alu alloy,Matte&water decals,Handlebar31.8×400,Stem90mm |
| Seat Post | High modulus Carbon fiber,Aero-Racing |
| Fork | R10 (Disc&thru-axle 12×100), high modulus Carbon fiber, 700C,
UV laser colorful decals |
| Derailleur Handle | RETROSPEC (SENSAH)-22S ( SRAM RIVAL-22S or SHIMANO 105 Group set optional with different
price) |
| Front Derailleur | RETROSPEC (SENSAH) ( SRAM RIVAL-22S or SHIMANO 105 Group set optional) |
| Rear Derailleur | RETROSPEC (SENSAH)-11S ( SRAM RIVAL-22S or SHIMANO 105 Group set optional) |
| Cranksets | RETROSPEC, Alu alloy, Hollow, 34-50T |
| Cassettes | SUNSHINE-11S, 11-30T |
| Chain | YBN-11S |
| BB | BB86*46*24mm, pressed, Hollow&sealed Bearings |
| Brake | ZOOM, flat-mount&cable pull Hydr+PRO float disc 160/140 |
| Hubs | RS, Alu alloy, 4-sealed Bearings, Slotted, F24*R24 holes |
| Rim | RS, Alu alloy AL7005, Double wall, Matte, W19×H36mm*700C |
| Tyre | MAXXIS-SIERRA, 60TPI, 700C*25C |
| Color | Red silver / Black silver / darkgray / cementgray / orange / blue /
yellow / white black |
Different Viewing angle of TWITTER Carbon road bike Model R10
Size of R10 carbon fiber road bike
| size | A | B | C | D | E | F | G | H | I | J | K | L | M |
| XS - 45cm | 450 | 505 | 363 | 408 | 74.3" | 71.2" | 74 | 100 | 55 | 505 | 572 | 969 | 265 |
| S - 48cm | 480 | 520 | 373 | 408 | 74.3" | 71.2" | 74 | 110 | 55 | 519 | 588 | 985 | 265 |
| M - 51cm | 510 | 538 | 388 | 408 | 74.3" | 71.2" | 74 | 130 | 55 | 533 | 607 | 1004 | 265 |
| L - 54cm | 540 | 550 | 394 | 408 | 74.3" | 71.2" | 74 | 150 | 55 | 532 | 620 | 1017 | 265 |
Viewing the details of R10 road bike.

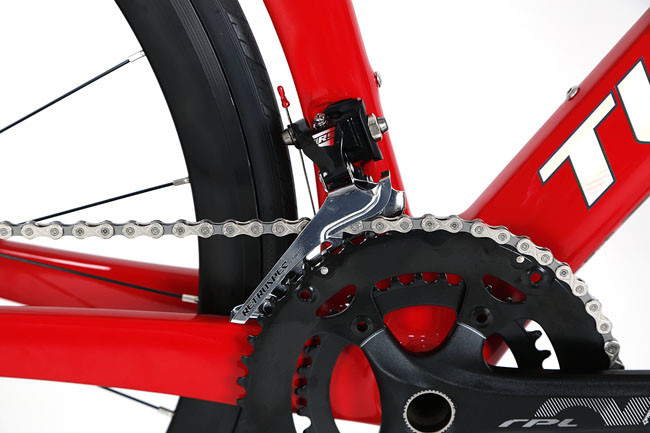

Built with RETROSPEC(SENSAH) Derailleur, which is popular in most
ASIAN& South America countries.

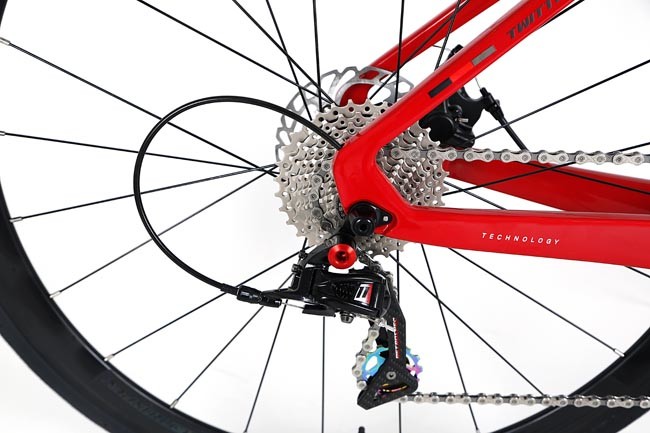

ZOOM Cable pull hydraulic disc brake.
Company service
We can provide document when you need export shipping document like
CE, Third-party inspections, Certificate of Origin, Form A/B/E,
etc.
Our engineering sales will help you choose the very suitable bikes,
and we also have the professional international team with more than
ten years experiences to give you proposals or guide to import bike
cargos from here.
Pre-sales service
1. Customer request Or Customized specification is acceptable.
2. 100% test and inspection before packing.
3. Fully charged with road bike and mountain bike before delivery.
4. Any inquiry about TWITTER Carbon mountain bike or road bike is
welcomed. Prompt response.
5. Fast delivery and shipping status tracking.
After-Sales service
1.12 hours /day 6 days /week on-line service.
2. Professional technician and engineer service.
3. Free instructions of driving or riding.
4. Spare parts and components support.
5. Replacement or repair if it is under warranty.
