CYCLONEpro Carbon Fiber Road Bike Disc Brake Full Inner Cable
SHIMANO UT/R8000 Carbon Wheel
Advantages of Carbon Fiber Road Bike
1. Strong carbon fiber shell durable frame, strong and light
weight.
2. the finished frame has better hardness, toughness, strength to
weight ratio tightness and other qualities.
3. Significantly improve the stability and smoothness of the
lamination and joint between the inner cavity of the frame.
4. Greatly reduce the excessive concentration of internal stress of
the frame, the length of the finished frame life, stable quality
5. The finished frame has a smooth appearance.
Component:
| Frame | CYCLONEpro(Disc&thru-axle 12×142mm), high modulus Carbon,EPS,Racing,full Inner-Cables,Gloss or
Matte,UV embossing decals |
| Handelbar Sets | TW, high modulus Carbon, Integrated Handlebar&Stem(420*90mm),UV
embossing water decals, full Inner-Cables |
| Seat Post | High modulus Carbon, UV decals |
| Clamps | Hidden Screw Fit to Frame |
| Fork | CYCLONEpro, high modulus Carbon,700C,UV embossing decals, Disc&thru-axle 12×100mm |
| Head Sets | TW, Alu alloy CNC with sealed-Bearings 52*52mm |
| Washer | Carbon 3K, 3×28.6×10mm |
| Derailleur Handle | SHIMANO UT/R8000-22S |
| Front Derailleur | SHIMANO UT/R8000 |
| Rear Derailleur | SHIMANO UT/R8000 |
| Cranksets | SHIMANO UT/R8000, 34-50T |
| Cassettes | SHIMANO UT/R8000-11S,11-28T |
| Chain | SHIMANO HG701-11S |
| BB | BB86×46×24mm, pressed, Alu alloy CNC&Hollow, with sealed
bearings |
| Brake | RS, flat-mount&cable pull Hydr(metal radiator)+PRO float disc
140 |
| Hubs | TW Alu alloy in Carbon, 4-sealed Bearings,Slotted,F20-R24 holes,Disc&thru-axle F12×100_R12×142mm |
| Rim | RS ultra-light carbon 3K twill,Clincher,W25×H50mm×700C, UV decals |
| Spoke | Pillar, Stainless Pro, Flat 14G,straight |
| Tyre | INNOVA-PRO, Smoothie, 60TPI, 700*25C, Skin-color edge |
Size:700C*45cm / 48cm / 51cm / 54cm

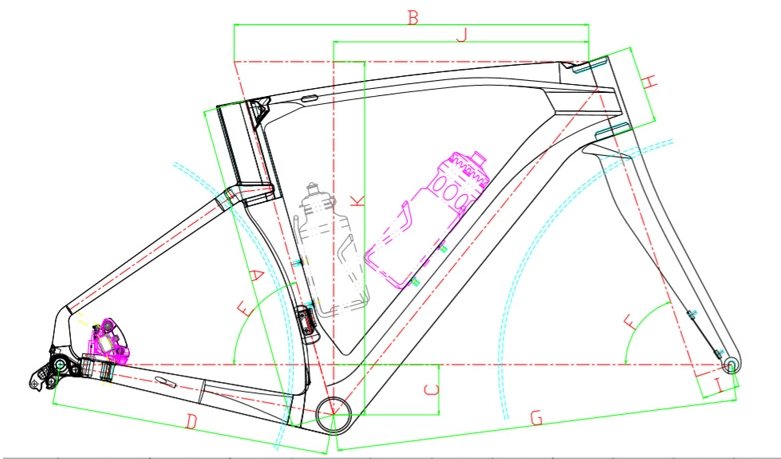

| The Geometry of CYCLONEpro |
| size | A | B | C | D | E | F | G | H | I | J | K |
| BB Center to Top of Seat Tube | Effective Top Tube Horizontal | BB offset | Chainstay Length | Seat angle | Head Angle | Front Center | Head Tube Length | Fork Offset | Reach | Stack |
| mm | mm | mm | mm | ° | ° | mm | mm | mm | mm | mm |
| XS - 45cm | 450 | 505 | -74 | 408 | 74.3 | 71.2 | 570 | 100 | 55 | 363 | 506 |
| S - 48cm | 480 | 520 | -74 | 408 | 74.3 | 71.2 | 588 | 114 | 55 | 374 | 518 |
| M - 51cm | 510 | 538 | -74 | 408 | 74.3 | 71.2 | 607 | 130 | 55 | 388 | 534 |
| L - 54cm | 540 | 550 | -74 | 408 | 74.3 | 71.2 | 620 | 150 | 55 | 394 | 553 |
| FRAME SIZE WITH RIDER HEIGHT |
|
|
| Frame size | XS - 45cm | S - 48cm | M - 51cm | L-54cm | |
| Rider height | 155-170cm | 165-175cm | 175-185CM | 185-195CM | |
Details:R8000-22S, carbon wheel
Derailleur / Brake System:
Derailleur Handle: SHIMANO UT/R8000-22S
Front Derailleur:SHIMANO UT/R8000
Cranksets: SHIMANO UT/R8000, 34-50T
Cassettes:SHIMANO UT/R8000-11S,11-28T
Chain:SHIMANO HG701-11S
Colors:BlackRed / Red / WhiteRed / Black / TiGray / CementGray / Silver /
Blue / Yellow / Orange/ OEM
Angles:
