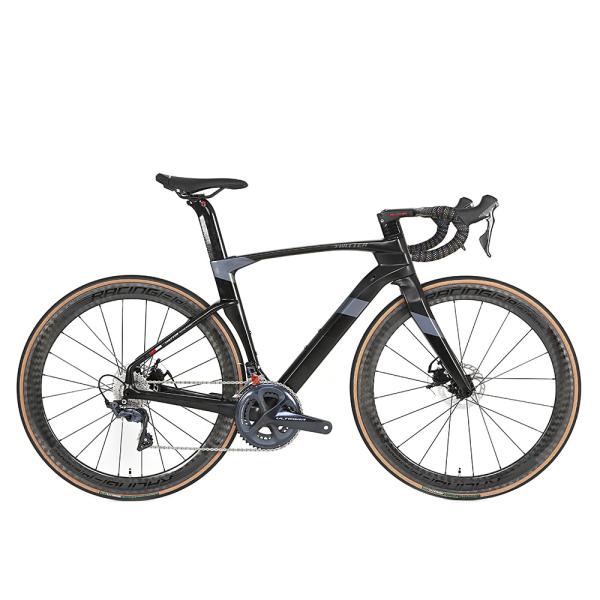

Thru Axle Disc Brak 142mm Road Bike Carbon Fiber Hidden Cables
Carbon Fiber Road Bike Features:
> Super light Carbon fiber T1000
> Internal cable routing system, easy for cables slip through,
> Tapered head tube design, together with the tapered and
straight fork design, which offers a better stiffness for steering
and acceleration.
> Strong chain stay and seat stay design, which offers super
stiffness and strength for racing
> DI2 system available too
> Maximized stiffness-to-weight ratio design, have a excellent
balance for weight-stiffness-strength.
Component of Carbon Fiber Road Bike:
Cyclonepro is a bike built for performance. Its driving precision,
together with the SHIMANO system that cancels vibrations,
guarantees unparalleled control of the vehicle. Perfect power
transmission means that every watt unloaded on the pedals will get
you closer to the finish line faster than your opponents. If you
want to get to the top of your favorite sport, Cyclonepro is the
perfect way to accompany you.
| Bike Model | CYCLONEpro -Disc |
| ConfRev | R7020-22S, carbon wheel |
| Wheel Size | 700C |
| Frame Height | 45cm / 48cm / 51cm / 54cm |
| Bike Color | BlackRed / Red / WhiteRed / Black / TiGray / CementGray / Silver /
Blue / Yellow / Orange, Holographic color(Red / Black) |
| Net Weight | 8.5KG |
| Frame | CYCLONEpro(Disc&thru-axle 12×142mm), high modulus Carbon,EPS,Racing,full Inner-Cables,Gloss or
Matte,UV embossing decals |
| Handelbar Sets | TW, high modulus Carbon, Integrated Handlebar&Stem(420*90mm),UV
embossing water decals, full Inner-Cables |
| Seat Post | High modulus Carbon, UV decals |
| Clamps | Hidden Screw Fit to Frame |
| Fork | CYCLONEpro, high modulus Carbon,700C,UV embossing decals, Disc&thru-axle 12×100mm |
| Head Sets | TW, Alu alloy CNC with sealed-Bearings 52*52mm |
| Washer | Carbon 3K, 3×28.6×10mm |
| Derailleur Handle | SHIMANO 105/R7020-22S (hydr disc Handle) |
| Front Derailleur | SHIMANO 105/R7000 |
| Rear Derailleur | SHIMANO 105/R7000 |
| Cranksets | SHIMANO 105/R7000, 34-50T |
| Cassettes | SHIMANO 105/R7000-11S,11-28T |
| Chain | SHIMANO HG601-11S |
| BB | BB86×46×24mm, pressed, Alu alloy CNC&Hollow, with sealed
bearings |
| Brake | SHIMANO 105/R7070 Hydr+PRO float disc 140 |
| Hubs | TW Alu alloy in Carbon, 4-sealed Bearings,Slotted,F20-R24 holes,Disc&thru-axle F12×100_R12×142mm |
| Rim | RS ultra-light carbon 3K twill,Clincher,W25×H50mm×700C, UV decals |
| Spoke | Pillar, Stainless Pro, Flat 14G,straight |
| Tyre | INNOVA-PRO, Smoothie, 60TPI, 700*25C, Skin-color edge |
| Belt | Colorful with vents,Comfortable&Skid resistant |
| Saddle | TW, comfortable&lightweight for racing |
| Pedals | RS ultra-light Alu alloy CNC with sealed-Bearings for Road |
| Cables | JAGWIRE |
| Accessories | Standard safety reflector for Handelbar,Seat post,Front wheel,Rear
wheel |
| Superlight Alu alloy bottle cage+Tools |
| TWITTER Manual+Warranty card |
Colors:BlackRed / Red / WhiteRed / Black / TiGray / CementGray / Silver /
Blue / Yellow / Orange
Angles:
Size:700C*45cm / 48cm / 51cm / 54cm
| size | A | B | C | D | E | F | G | H | I | J | K |
| BB Center to Top of Seat Tube | Effective Top Tube Horizontal | BB offset | Chainstay Length | Seat angle | Head Angle | Front Center | Head Tube Length | Fork Offset | Reach | Stack |
| mm | mm | mm | mm | ° | ° | mm | mm | mm | mm | mm |
| XS - 45cm | 450 | 505 | -74 | 408 | 74.3 | 71.2 | 570 | 100 | 55 | 363 | 506 |
| S - 48cm | 480 | 520 | -74 | 408 | 74.3 | 71.2 | 588 | 114 | 55 | 374 | 518 |
| M - 51cm | 510 | 538 | -74 | 408 | 74.3 | 71.2 | 607 | 130 | 55 | 388 | 534 |
| L - 54cm | 540 | 550 | -74 | 408 | 74.3 | 71.2 | 620 | 150 | 55 | 394 | 553 |
Details of EPS technology:
1. Strong carbon fiber shell, durable frame, strong and light
weight.
2.the finished frame has better hardness, toughness,strength to
weight ratio, tightness and other qualities.
3.Significantly improve the stability and smoothness of the
lamination
and joint between the inner cavity of the frame.
4 greatly reduce the excessive concentration of internal stress of
the frame, thelength of the finished frame life, stable quality
5.The finished frame has a smooth appearance.
Packing:
1.Material:Carton outside with Plastic inside package.
2.Carton Size:140CM*75CM*20CM
3.Container Quantity:20GP-120pcs-125pcs;40HQ-290pcs-296pcs
Exclusive agency conditions:
1.Cooperation time over 1 year and have regular orders at the same
time.
2.Need to reach target sales per year.(Target sales according to
different country and different economic development to set)
3.One sign agent contract one year.If haven't reach target sale
last year will cancel agent start next year.
Warranty:
Quality is our number 1 focus for the entire team.The design,
injection, QA & packaging are all done in-house for efficiency and
to standardized a high level of quality control.Warranty is 2 years
under normal using(not man made damage).All of bikes and bike parts
will be tested before shipping.If you received some not working can
show the pictures to us or send it back to us to repair or replace.
FAQ:
1. Q: Can I get some samples? A: We are honored to offer you sample
for quality check.
2. Q: Can I mix different models? A: Yes,different models can be
mixed .
3. Q: What payment do you accept? A: In general, our payment is
trade assurance order for retail order and bulk order accept T/T
,Deposit and etc.
4.Q: If you want to know more about us pls contact me directly.^_^
+86 15818758950
