BB86 Pressed 700C Bike Frame , Lightweight Road Bike Frame Hidden Cable

    Buy cheap BB86 Pressed 700C Bike Frame , Lightweight Road Bike Frame Hidden Cable from wholesalers

    Buy cheap BB86 Pressed 700C Bike Frame , Lightweight Road Bike Frame Hidden Cable from wholesalers
    • Buy cheap BB86 Pressed 700C Bike Frame , Lightweight Road Bike Frame Hidden Cable from wholesalers
    • Buy cheap BB86 Pressed 700C Bike Frame , Lightweight Road Bike Frame Hidden Cable from wholesalers

    BB86 Pressed 700C Bike Frame , Lightweight Road Bike Frame Hidden Cable

    Ask Lasest Price
    Brand Name : TWITTER
    Model Number : CYCLONEpro-Disc frame
    Certification : CE RoHS REACH ISO9001
    Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, alipay
    Supply Ability : 30000pc per month
    Delivery Time : 7-15 working days
    Price : Negotiable
    • Product Details
    • Company Profile

    BB86 Pressed 700C Bike Frame , Lightweight Road Bike Frame Hidden Cable

    700C Carbon Fiber Road Bike Frame Disc Brake Hidden Cable BB86 Pressed


    Frame specification:

    Brand:TWITTER
    Model/Name:CYCLONEpro-Disc carbon road Frame+Fork+Seat post+
    Headsets+Cover&Washer +Lever+Handlebar set
    Feature:All cables inner Routing
    Frame Size(Height):45cm / 48cm / 51cm / 54cm
    Material:High modulus Carbon fiber(T900 mix)
    ASSY Size:700C, BB86*46 Pressed+Head tube 52*52&Cover, Hanging fixed to FD, Thru axle F12*100_R12*142mm, Flat-mount post, Inner fixed to seat post, max 700*28C tyre
    Process:XC-Racing, EPS, Inner-Cables, Matte or Gloss or Holographic color paint, UV laser colorful decals
    Weight:Frame 1.02KG, Fork 0.43KG, Seat post 0.19KG, Handlebar set 0.19KG


    sizeABCDEFGHIJK
    BB Center to Top of Seat TubeEffective Top Tube HorizontalBB offsetChainstay LengthSeat angleHead AngleFront CenterHead Tube LengthFork OffsetReachStack
    mmmmmmmm°°mmmmmmmmmm
    XS - 45cm450505-7440874.371.257010055363506
    S - 48cm480520-7440874.371.258811455374518
    M - 51cm510538-7440874.371.260713055388534
    L - 54cm540550-7440874.371.262015055394553

    Size chart (Unisex)

    HOW TO CHOOSE THE RIGHT SIZE
    Wheel size700C700C700C700C700C
    Frame size46CM48CM50CM52CM54CM
    Fit height155-165CM165-175CM175-185CM185-190CM190-200CM

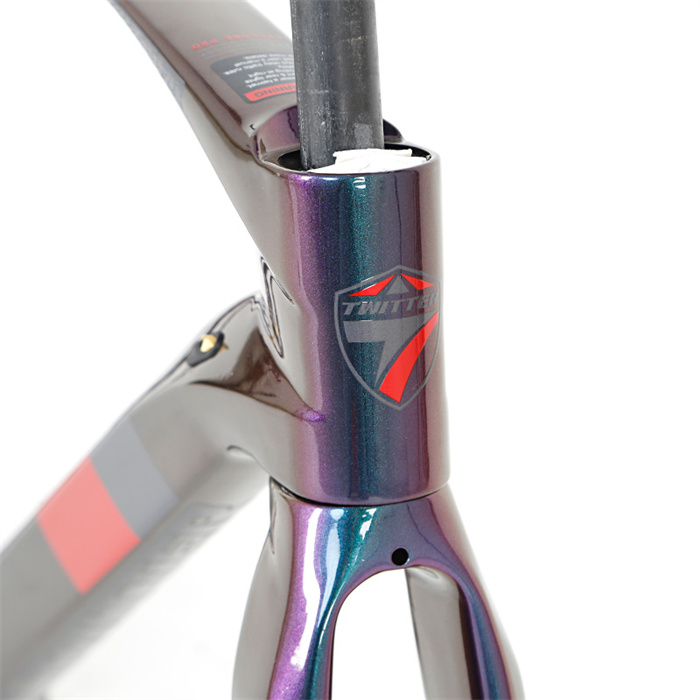

    Head tube design

    Feature of Carbon Fiber Road Bike

    • High modulus Carbon fiber(T900 mix) with light weight
    • Double Hydraulic Disc Gives Fast and Smooth , Good quality carbon material
    • Set different groupset and bike parts
    • EPS technology and UV laser colorful decals
    • The use of EPS technology for carbon fiber products offers the following advantages

    • A sturdy carbon fiber casing, making the frame durable and sturdy, and light in weight

    • Reduce the excessive stress concentration inside the frame

    • Stabilization and smoothness between the laminates in the inner layer of the frame and the joint

    • Positive strength to weight ratio, strength and shock absorption properties make it effective for the frame

    • Finished frame has a bright and smooth appearance.

    • High hardness, good toughness, good strength and good adhesion.

    • Long service life and stable quality.


    Ride Quality

    TWITTER road bike frame main meterial is carbon fiber, alloy material availble, When we started conceptualizing bikes, we will focus on more than just weight and stiffness. We put a premium on ride quality, because ride quality and speed go hand in hand. Ride quality also makes long days better, and inspires confidence on thrilling, twisty descents.
